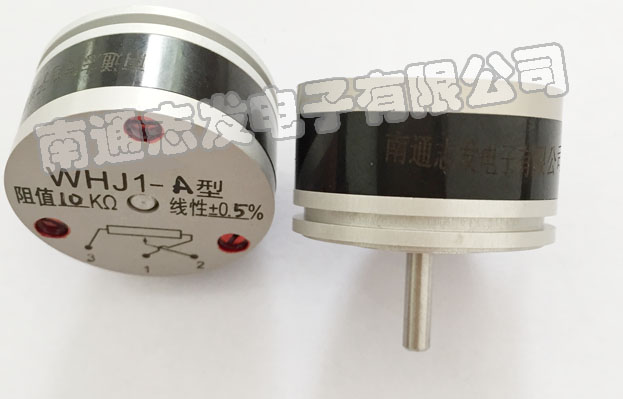

   Product information:WHJ1-A Precision Potentiometers    Number of hits: 4987

 WHJ1-A精密合成膜电位器

WHJ1 precision Displacement Potentiometers(Carbon Precision Potentiometers)

WHJ1-A,WHJ1-AII(Double),WHJ1-C,WHJ1-D,WHJ2,WHJ3-A,WHJ3-B

Rated rcsistance range:1KΩ~220KΩ
Resistance tolerance:±10% ±20%
Rated power:1W
Maximum working voltage:250V
Mechanical endurance:100(cycles)
Linearity:±0.1% ±0.25% ±0.5%
