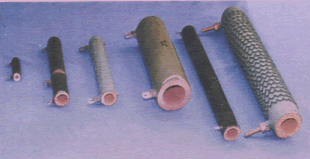

RX20、RX20(T)  Power Resistor

RX20/RX20T  Power Resistor

RX20/RX20T   Resistor is the use of high-quality alloy resistance wire wound after its external surface layer of enamel from the sintering of power resistors. The resistance of heat-resistance, moisture resistant and can be applied in all sorts of electrical equipment and electronic devices, or low-frequency DC Circuit in exchange for blood pressure, pressure, or shunt resistor with load.

Specifications：10W-500W

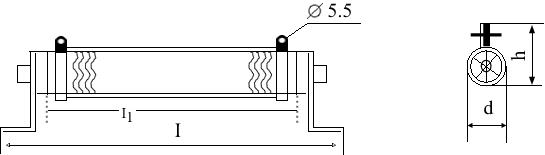

Model	Power(W)	L	L1	D	S
RX20	8		35	14	28.5
	10		41	14	28.5
	16		45	17	31
	20		51	21	31
	25	83	51	21	35
	30	103	71	21	35
	40	119	87	21	43
	50	123	91	29	43
	75	196	140	29	43
	100	226	170	29	43
	150	272	216	29	43
	200	323	267	29	48
	300	326	270	40	60
